1988804
Manufacturer:
Phoenix Contact
Mfr.Part #:
1988804
Datasheet:
Description:

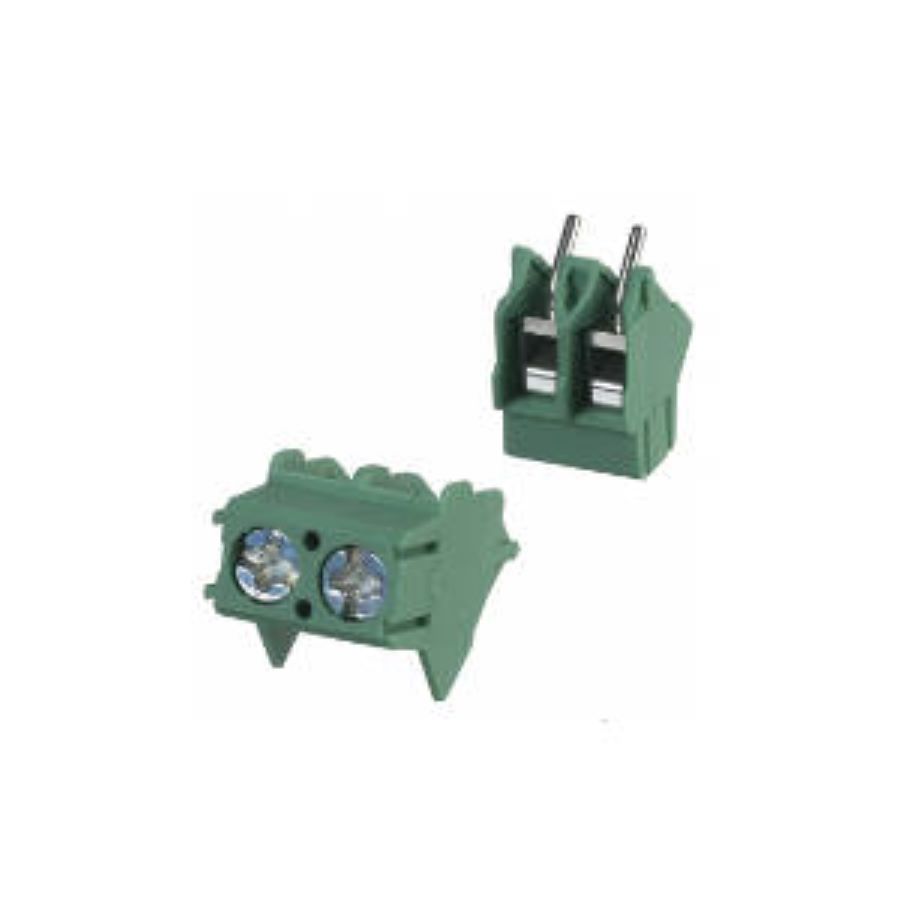

Terminal Blocks Through Hole 2 5 mm 17.5 A 400 V
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 12.8 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 12.8 mm |
| Material | Polyamide |
| Packaging | Bulk |
| Voltage Rating | 400 V |
| Depth | 12.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 2.040003 g |
| Contact Material(Contact Finish) | Tin |
| Pitch | 5 mm |
| Current | 15 A |
| Current Rating | 17.5 A |
| Max Current Rating | 24 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CB, UL, VDE |
| Number of Circuits | 2 |
| Orientation | Straight |
| Max Supply Voltage | 250 V |
| Color | Green |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | Green |
| Connection Method | Screw |
| Current Rating (IEC) | 24 A |
| Voltage Rating (IEC) | 250 V |
Stock: 47
Distributors
pcbx
pcbxUnit Price$0.73843
Ext.Price$0.73843
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73843 | $0.73843 |
| 10 | $0.59875 | $5.98750 |
| 25 | $0.55863 | $13.96575 |
| 50 | $0.52120 | $26.06000 |
| 100 | $0.48628 | $48.62800 |
| 300 | $0.45370 | $136.11000 |
| 500 | $0.42331 | $211.65500 |
| 1000 | $0.40236 | $402.36000 |
